8″ Facial Recognition Thermometer Display

EXCLUSIVE ONLINE OFFERS

From £1,249.99 Exc. VAT

Clear

Description

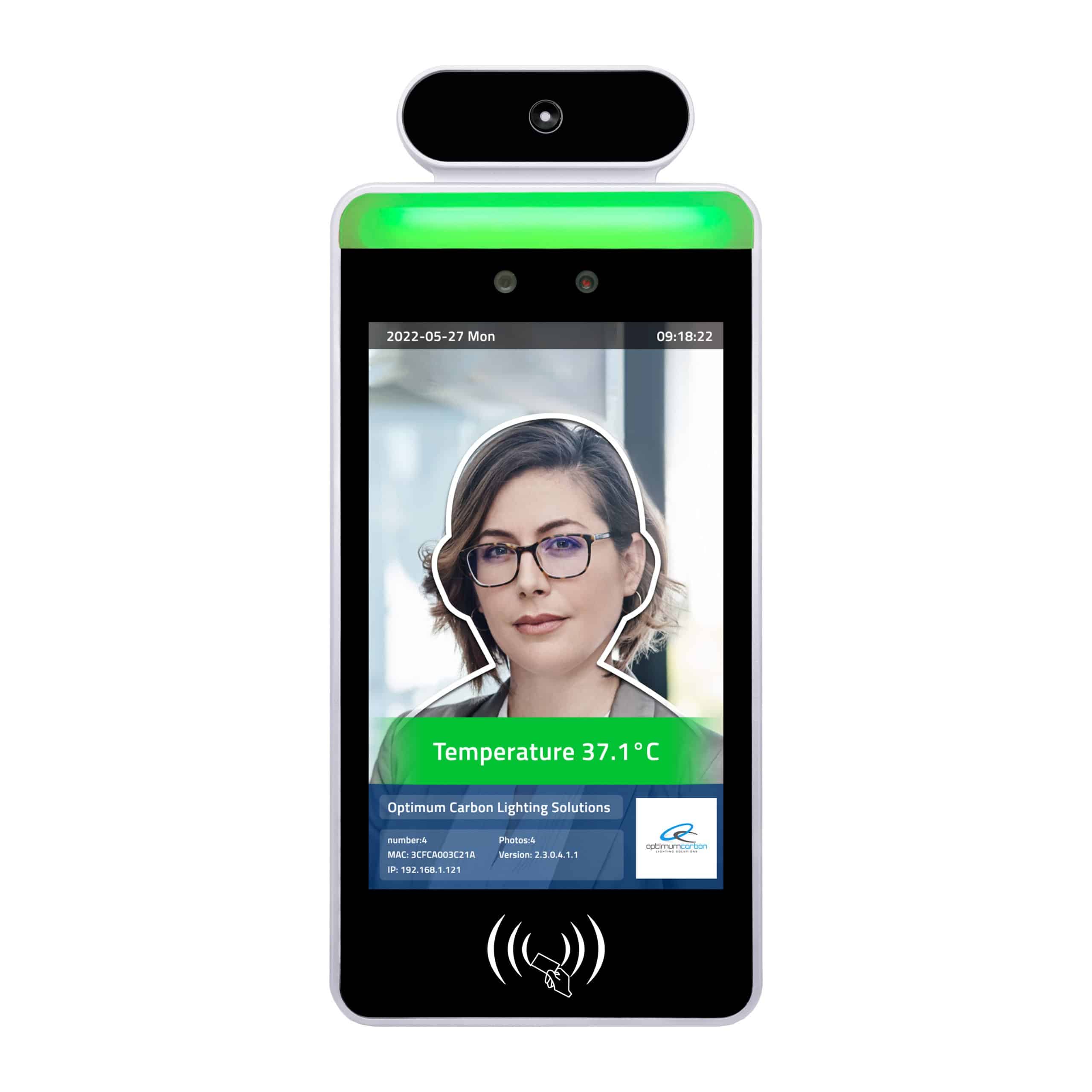

8″ Facial Recognition Thermometer Display

FRTD - Features

FRTD – Features



Automated Contactless Temperature Checking

The automated nature of this system not only efficiently reduces manual labour, but also means it is completely contactless, which is of paramount importance in today’s world.Using Melexis thermal imaging technology, in conjunction with cooling fans to maximise accuracy, this complete solution can read a user’s temperature and display the results in 1.8 seconds, even if they are wearing a mask.

FRTD - Automated Contactless Temperature Checking

FRTD – Automated Contactless Temperature Checking

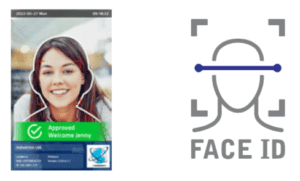

High Security Facial Recognition

With 99.7% identification accuracy, this solution can also be used as a check in/out system for offices, warehouses and other secure locations. You can even create a whitelist and blacklist to control and restrict access, as well as recording all building entries.Adjust the identification security levels from using the photo on an ID card to high level military standard using a 3D face scan and body temperature check.

FRTD - High Security Facial Recognition

FRTD – High Security Facial Recognition



All-in-One Solution

This is a full turnkey system, comprising of a 24/7 IPS panel, dual-lens optical facial recognition cameras, a thermal imaging module, an indication light, optional RFID/NFC integration and even the software to control, record and monitor all the functionality.

FRTD - All in One Solution

FRTD – All in One Solution

Features:

Synchronise with Existing Systems

Using the connection interface, this solution can be integrated with existing door or ticketing systems. Using the software included, you can stipulate entry conditions such as an acceptable temperature range, mask checking and specific user entry or restriction.

FRTD - Synchronise with Existing Systems

FRTD – Synchronise with Existing Systems

Software Included

The software is included at no extra cost and can be easily installed on your own PC or server to maximise security. Create separate login accounts with varying privileges, for example an account can be created for a receptionist to only register visitors. Can also work offline if required.

FRTD - Software Included

FRTD – Software Included

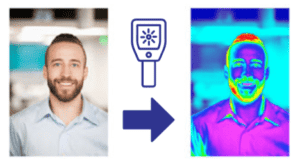

Accurate Thermal Imaging

Using a Melexis dual-chip system, the thermal imaging module measures the ambient temperature as well as the user’s body temperature to maximise accuracy. The module also features a cooling fan to further improve the precision of the reading. The full sensor temperature range is -40°C to 85°C with an accuracy of ±0.3°C.

FRTD - Accurate Thermal Imaging

FRTD – Accurate Thermal Imaging

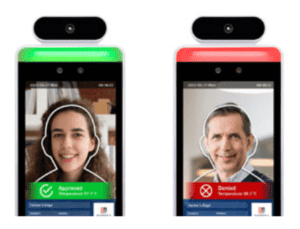

Strip-Light Indicator

When taking a temperature or mask checking reading, this acts as on-camera illumination for more accurate results. It also synchronises with the software to indicate acceptance (green) or rejection (red) based on user-defined conditions.

FRTD - Strip Light Indicator

FRTD – Strip Light Indicator

Fever Alarm

When a user’s temperature reading exceeds a stipulated temperature, a visual and audio alarm activate to alert the user that they have a fever. This feature can also be disabled if not required.

FRTD - Fever Alarm

FRTD – Fever Alarm

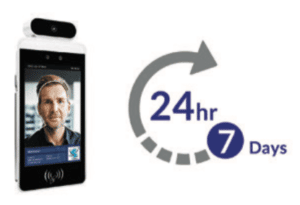

24/7 Commercial Grade

This is a truly commercial grade solution as it can be in constant use around the clock. This is ideal for 24/7 commercial locations like supermarkets and gyms, as well as corporate and warehouse settings when used as a clocking in/out system.

FRTD - 247 Commercial Grade

FRTD – 247 Commercial Grade

Mask Detection System

As well as reading body temperature, the system can also check if the user is wearing a mask if this is an entry requirement to your building. This feature can also be disabled if not required.

FRTD - Mask Detection System

FRTD – Mask Detection System

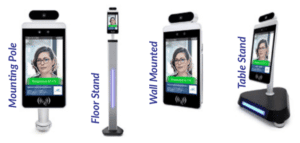

Mounting Options

As standard this solution comes with an adjustable desk mounted pole. Optional mounting options include: a flush fit or adjustable wall mount, a desk stand, or a floor stand. All stand options have a modern integrated blue LED light strip.

FRTD - Mounting Options

FRTD – Mounting Options

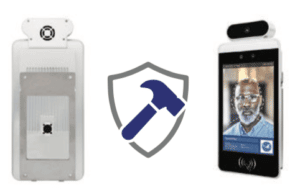

Robust Metal Enclosure

To add to its commercial credentials, the enclosure is manufactured using aluminium rather than plastic as this is less likely to be damaged in locations such as warehouses and factory floors.

FRTD - Robust Metal Enclosure

FRTD – Robust Metal Enclosure

Optional Automatic Hand Sanitiser

If you are utilising the floor stand, you can also add on an optional hand sanitiser dispenser to provide an extra level of safety.

FRTD - Optional Automatic Hand Sanitiser

FRTD – Optional Automatic Hand Sanitiser

IC Card NFC Integration

The display has an NFC module integrated which supports IC cards for door entry. This feature can also be controlled and managed by the software that is included.

FRTD - IC Card and NFC Integration

FRTD – IC Card and NFC Integration

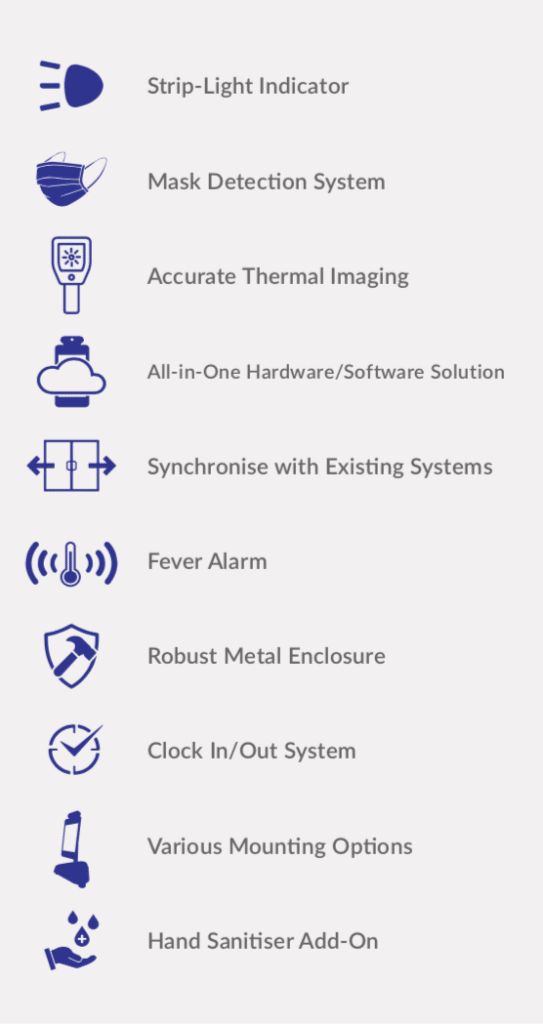

FRTD - Features List

FRTD – Features List

Full Specification

8 Inch – FR8A Panel
  • Resolution: 800×1280
  • Display Area (mm): 107.62×172.18
  • Aspect Ratio: 10:16
  • Brightness (cd/m2): 450
  • Colour: 16.7M
  • Viewing Angle: 178°
  • Contrast Ratio: 5000:1
Optical Camera:
  • Resolution: HD (2 million pixels)
  • Type: Binocular dual-lens (wide dynamic camera)
  • Aperture: F2.4
  • Optimal Focus Range: 50cm-1.5m
  • White Balance: Auto
Thermal Imaging Module
  • Optimal Reading Distance: 50cm-1m
  • Measurement Accuracy: ±0.3°C
  • Measurement Range: 10°C-42°C
  • Thermal field of view: 32°Cx32°C
Interface
  • Network Module: 1 x Ethernet RJ-45 Port, WiFi
  • USB: 1 x USB OTG, 1 x USB HOST
  • Serial: 1 x RS-232 serial port
  • Relay: 1 x Output
  • Wiegand: 1 x Input, 1 x Output
Software
  • Temperature Alarm: Optional
  • Face Library: 30,000
  • Facial Recognition Security: Level 1-4
  • 1:N Facial Recognition: Supported
  • 1:1 Face Comparison: Supported
  • Firmware Upgrades: Supported

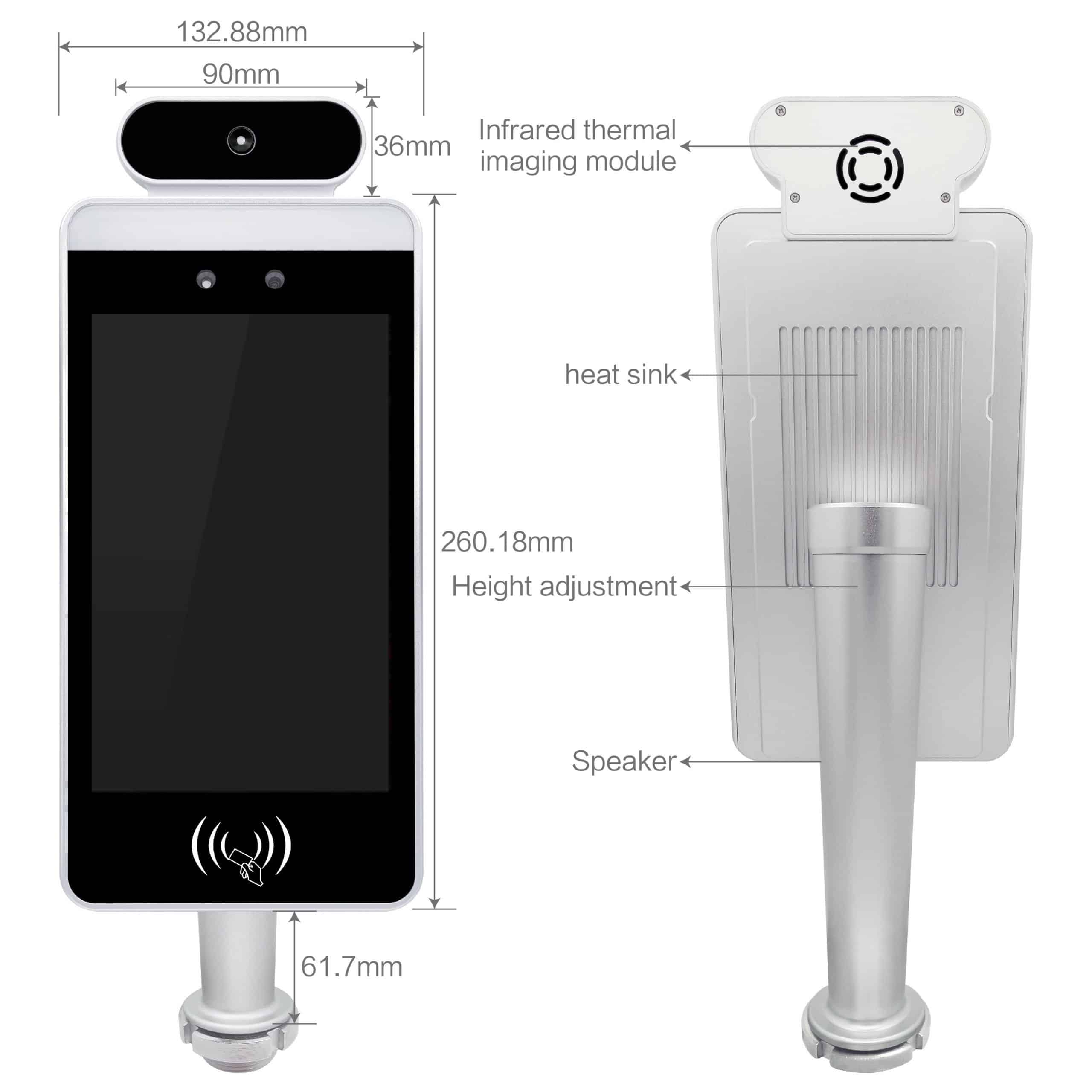

Mechanical
  • Unit Size (WxHxD mm): 132.88×296.18×25
  • Package Size (WxHxD mm): 180x430x120
  • Net Weight (kg): 1.5
  • Gross Weight (kg): 4
Computer
  • CPU: RK3288 quad-core
  • Operating System: Android 7.1.2
  • Storage: EMMC 8G
Audio
  • Speaker Type: 2.5W, 4Ω (x2)
Power
  • Power Consumption (W): 13.5 (Maximum)
  • Input Voltage: DC12V
Environmental
  • Operating Temperature: 0°C to 50°C
  • Storage Temperature: -30°C to 60°C
  • Operating Humidity: 10% to 80%
  • Storage Humidity: 5% to 95%
Accessories
  • Included: Desk Mounting Pole
  • Optional: Wall Mount, Table Stand Base, Floor Stand
Standards
  • Certification: CE, FCC & ROHS

Additional information

Weight 11 kg
Dimensions 350 × 160 × 960 mm
FRTD Options

Desk Stand, Wall Mount, Table Stand, Floor Stand, Floor Stand with Automatic Hand Sanitiser
