CAS PDN Series Weighing Scales – 15kg with Dual Display
£299.17 Exc. VAT
CAS PDN Series Weighing Scales – 15kg Trade Approved POS Integrated Scale
The CAS PDN 15kg POS Integrated Scale is a precise, reliable and trade-approved weighing solution designed for seamless integration with compatible retail EPOS and point-of-sale systems.
Ideal for convenience stores, farm shops, delicatessens, greengrocers, butchers, sweet shops and other businesses selling products by weight, the CAS PDN transmits accurate weight data directly to your POS software. The system can then calculate the selling price automatically using the selected product’s price-per-kilogram rate.
Designed as a direct replacement for many existing CAS PDII scale integrations, the PDN uses the same proven internal technology while introducing a modern black and ivory casing with smooth, rounded edges.
The scale is compatible with a range of retail software platforms, including ICR Touch, SamTouch and InfiPos, and can also be used with PrintNode-supported cloud POS systems, subject to software configuration.
Please check compatibility with your POS software provider before purchasing.
Why Choose the CAS PDN Integrated POS Scale?
Fast and Accurate POS Integration
The CAS PDN connects directly to a compatible POS terminal using the supplied 9-pin RS232 serial cable. Weight information is transmitted instantly to the EPOS software, helping staff process weighed items quickly and accurately.
This removes the need to enter weights manually, reducing operator errors and helping to improve checkout speed.
Trade Approved for Selling Goods by Weight
The CAS PDN is legally approved for commercial retail use and is suitable for businesses selling products by weight in the UK and EU.
The scale is:
- Class III trade approved
- Individually calibrated and verified
- M marked with the relevant notified body number and verification year
- Supplied with a Certificate of EU Conformity
- Compliant with EU Directive 2014/31/EU for Non-Automatic Weighing Instruments
This makes the CAS PDN suitable for professional retail environments where accurate and legally compliant weighing is essential.
Dual Range Weighing Accuracy
The CAS PDN offers excellent precision across its full 15kg weighing capacity:
- Minimum weight: 40g
- 2g increments from 40g to 6kg
- 5g increments from 6kg to 15kg
- Maximum capacity: 15kg
This dual-range accuracy makes the scale suitable for weighing both smaller products and heavier retail items.

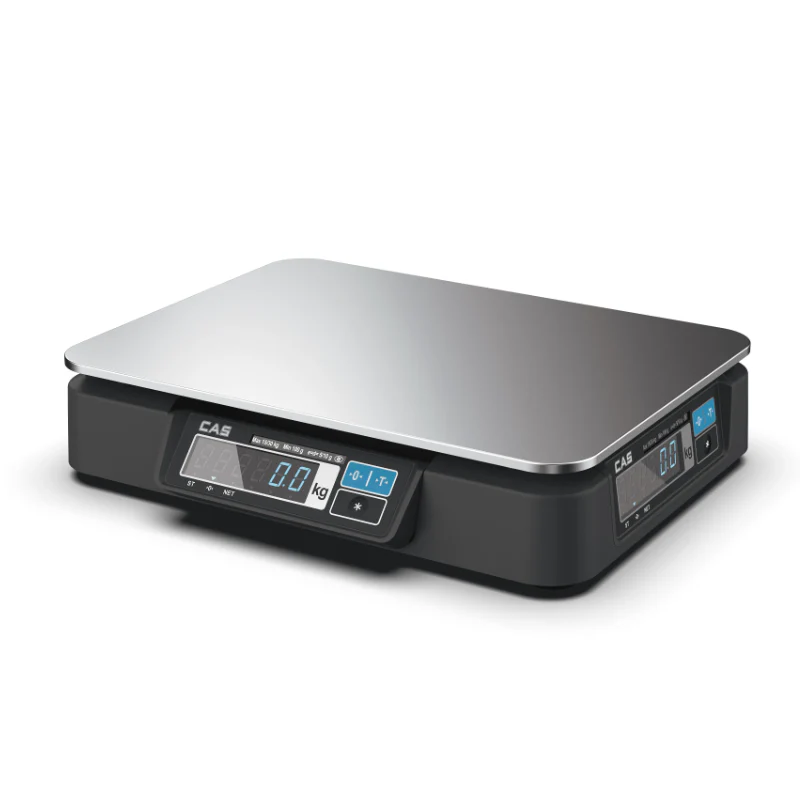

Operator and Customer Displays
The scale includes two clear displays as standard:
- Front-facing operator display
- Side-mounted customer display
The customer display can be fitted to either the left-hand or right-hand side of the scale, allowing the unit to suit different checkout counter layouts.
Both the operator and customer can clearly see the recorded weight, helping provide a transparent and professional checkout experience.

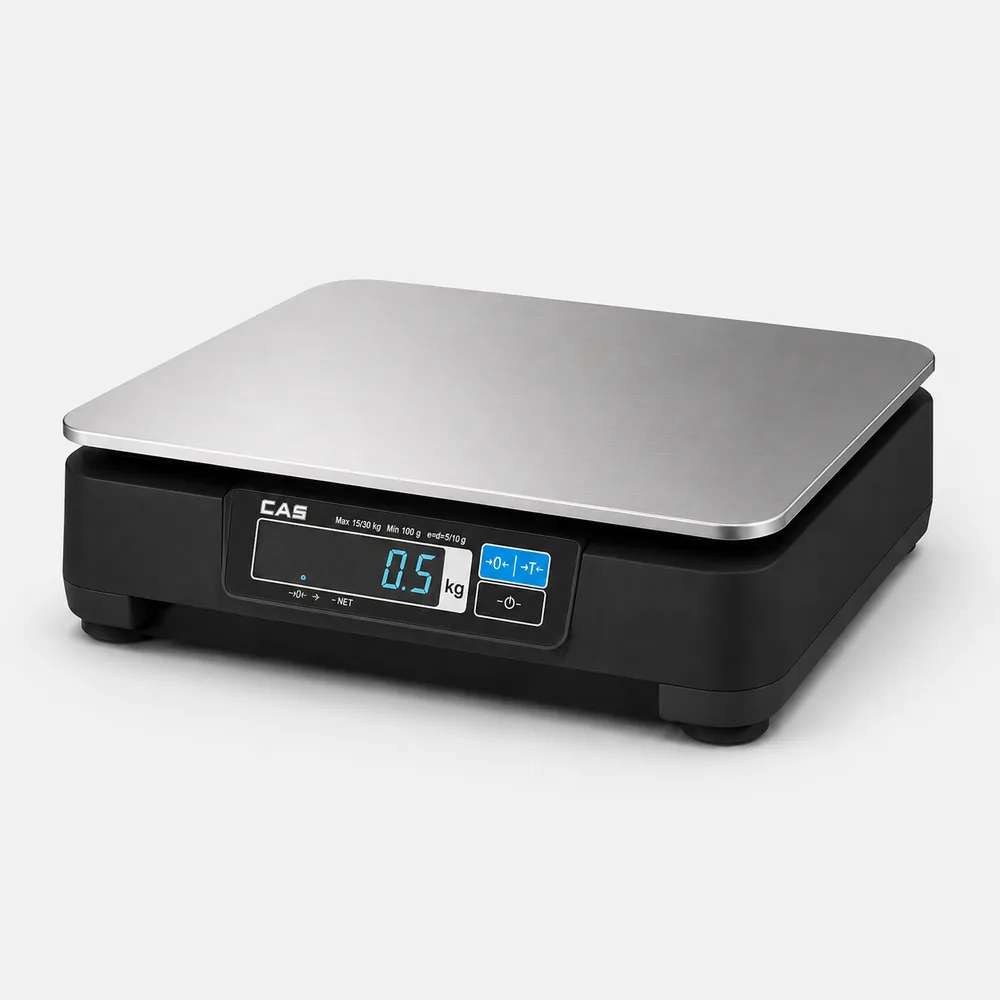

Large Stainless Steel Weighing Platter
The durable stainless steel platter measures 380mm x 280mm, providing a generous surface for weighing a wide variety of retail products.
The smooth stainless steel surface is hygienic, hard-wearing and easy to clean, making it suitable for busy retail environments.
Flexible Communication Protocols
The CAS PDN can be programmed through its setup menu to use a range of preconfigured communication protocols.
This allows the scale to work with different compatible POS software platforms, provided the correct protocol, COM port and communication settings are selected.

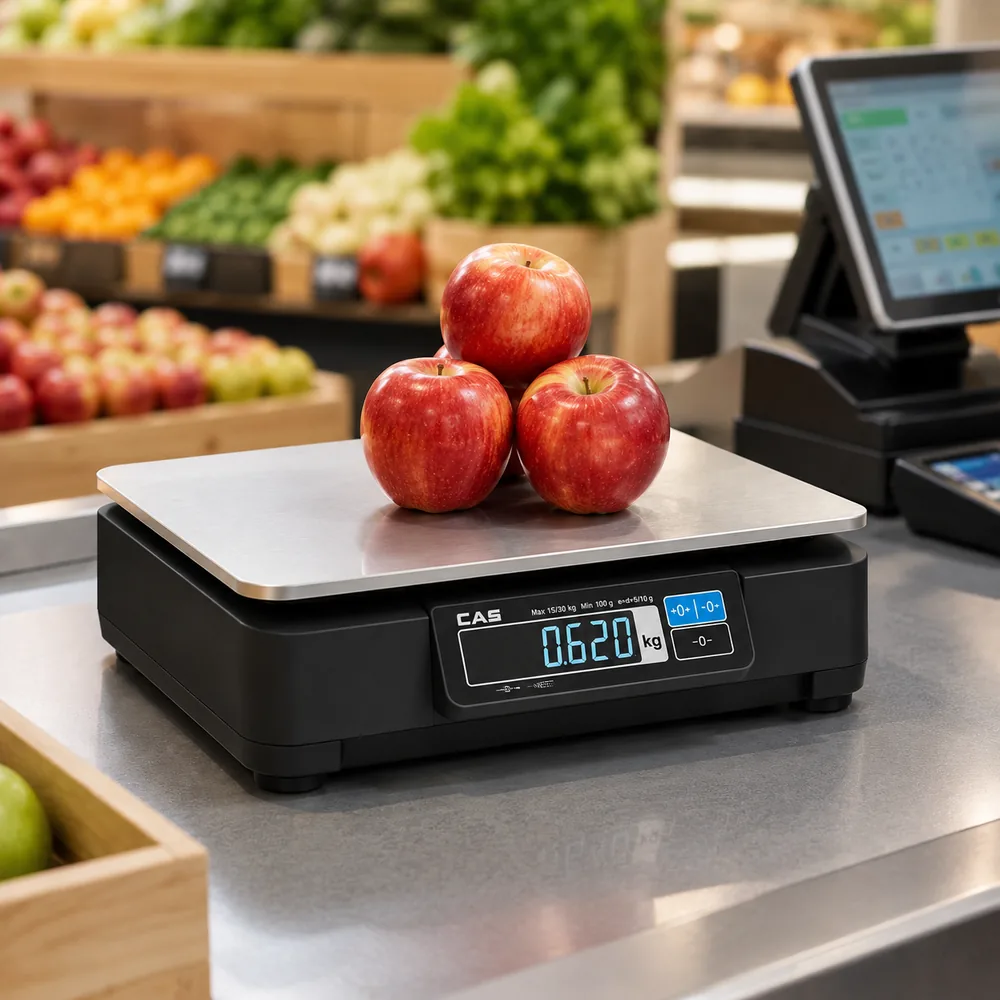

How the CAS PDN POS Scale Works
The CAS PDN connects directly to your POS terminal and sends weight data to the retail software during a transaction.
The typical checkout process is:
- Place the product on the scale.
- Select the relevant product or PLU button within the POS software.
- The POS system reads the weight transmitted by the scale.
- The software calculates the selling price using the product’s price-per-kilogram rate.
- Confirm the weight if prompted and complete the transaction.
This automated process helps to:
- Reduce manual weight-entry errors
- Improve pricing accuracy
- Speed up checkout times
- Simplify staff training
- Create a smoother customer experience
POS Software Compatibility
The CAS PDN can integrate with a range of retail and EPOS software platforms, including:
- SamTouch
- ICR Touch
- InfiPos
- PrintNode-compatible cloud POS systems
- Other compatible retail software using a supported serial communication protocol
Compatibility will depend on the configuration and capabilities of your particular POS software.
Please confirm compatibility with your EPOS software provider before ordering, particularly if you are replacing an existing CAS PDII scale.
RS232 Serial Connection
The CAS PDN uses a reliable RS232 serial connection and is supplied with a 9-pin RS232 data cable.
For optimal performance, your POS terminal must have a dedicated 9-pin male RS232 serial port.
USB-to-serial adapters are not recommended, as they may cause intermittent communication, incorrect weight readings or connection failures.
Your POS software must also be configured with the correct:
- COM port number
- Baud rate
- Communication protocol
- Data settings
- Scale device configuration
CAS PDN 15kg Specifications
- Maximum Capacity: 15kg
- Minimum Weight: 40g
- Resolution: 2g increments up to 6kg and 5g increments from 6kg to 15kg
- Trade Approval: Class III approved for retail trade use
- Scale Dimensions: 384mm wide x 308.4mm deep x 81.8mm high
- Platter Dimensions: 380mm wide x 280mm deep
- Scale Weight: 6.7kg
- Platter Material: Stainless steel
- Connectivity: RS232C 9-pin serial connection
- Serial Cable: 9F-to-9M RS232 cable included
- Power Supply: AC 220V / 50Hz
- Operator Display: Front-facing operator display included
- Customer Display: Side-mounted customer display included
- Customer Display Position: Can be mounted on either the left or right side
- Communication Protocols: Multiple configurable POS communication protocols
- Colour: Modern black and ivory casing
What Is Included?
Each CAS PDN 15kg scale is supplied with:
- CAS PDN 15kg integrated POS scale
- Stainless steel weighing platter
- Integrated operator display
- Side-mounted customer display
- UK power supply
- USB power cable
- 9F-to-9M RS232 serial data cable
- Certificate of EU Conformity
Ideal for Retail Businesses
The CAS PDN is suitable for a wide range of retail applications, including:
- Convenience stores
- Farm shops
- Delicatessens
- Greengrocers
- Butchers
- Bakeries
- Sweet shops
- Health food stores
- Zero-waste shops
- Specialist food retailers
- General retail stores selling weighed products
Its compact footprint, modern appearance and reliable POS integration make it an excellent choice for both new installations and replacement scale projects.
Important Installation Information
The CAS PDN requires a POS terminal with a dedicated 9-pin RS232 serial port for the most reliable operation.
USB-to-serial adapters are not recommended and may result in unreliable communication between the scale and the POS system.
Before purchasing, please check that:
- Your POS software supports integrated weight input
- Your POS terminal has a compatible 9-pin RS232 port
- The appropriate CAS PDN communication protocol is supported
- Your POS provider can configure the scale within the software
Important Care Information
The CAS PDN is not waterproof and must not be used in wet, damp or high-moisture environments.
Do not allow liquids to enter the scale casing, displays, connections or internal components. Water or liquid damage is not covered by the manufacturer’s warranty.
Buy the CAS PDN 15kg Integrated POS Scale
The CAS PDN 15kg POS Integrated Scale provides fast, accurate and legally compliant weighing for modern retail environments.
With trade approval, dual displays, a durable stainless steel platter and direct RS232 POS connectivity, it offers a dependable solution for retailers that need to calculate prices automatically from product weight.
Order online today or contact our team before purchasing for advice on POS software compatibility and installation requirements.
Download
Download our CAS PDN POS Scale – Specification Sheet
CAS PDN POS Scale – Specification Sheet
Additional information
| Weight | 5.6 kg |
|---|---|
| Dimensions | 384 × 309 × 82 mm |
