CAS PDN Series Weighing Scales – 15kg with Pole Display
£332.50 Exc. VAT
CAS PDN 15kg Trade Approved POS Integrated Scale with Customer Pole Display
The CAS PDN 15kg POS Integrated Scale with Customer Pole Display is a precise, reliable and trade-approved weighing solution designed for direct integration with compatible retail EPOS and point-of-sale systems.
Ideal for convenience stores, farm shops, delicatessens, greengrocers, butchers, sweet shops and other retailers selling products by weight, the CAS PDN sends accurate weight data directly to the POS software. The system can then calculate the selling price automatically using the selected product’s price-per-kilogram rate.
This pole-display version provides excellent visibility for both staff and customers. The scale includes an integrated operator display and a separate freestanding customer pole display supplied with a 2-metre cable, allowing it to be positioned conveniently on the counter.
Designed as a direct replacement for many existing CAS PDII integrations, the PDN retains the same proven internal technology while introducing a more modern black and ivory casing with smooth, rounded edges.
The scale works with a range of popular retail software platforms, including ICR Touch, SamTouch and InfiPos, and can also be used with PrintNode-supported cloud POS systems, subject to software configuration.
Please confirm compatibility with your POS software provider before purchasing.
Why Choose the CAS PDN with Pole Display?
Fast and Accurate POS Integration
The CAS PDN connects directly to a compatible POS terminal using the supplied 9-pin RS232 serial cable.
Weight information is transmitted automatically to the EPOS software, helping staff process weighed products quickly and accurately without manually entering the weight.
This can help to:
- Reduce operator errors
- Improve checkout speed
- Increase pricing accuracy
- Simplify staff training
- Create a smoother customer experience

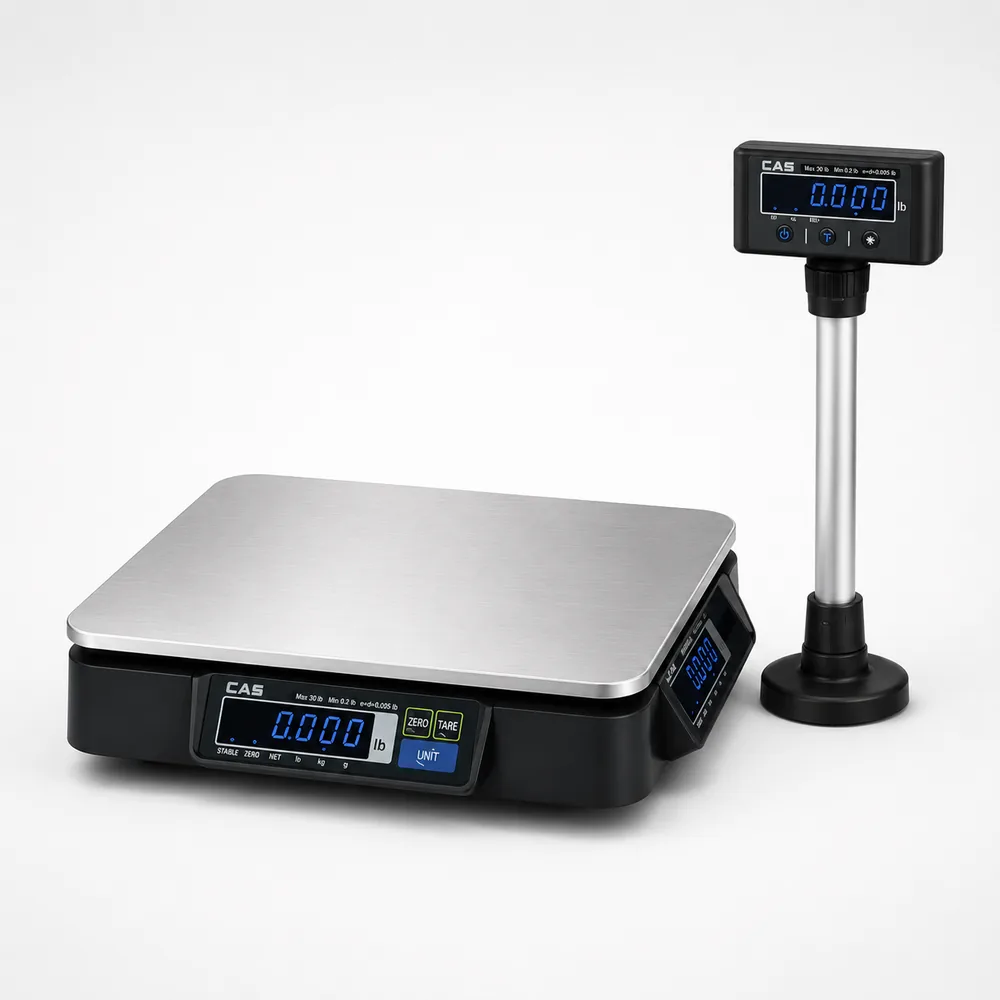

Freestanding Customer Pole Display
This version includes a separate customer pole display for clear visibility at the checkout.
The display is supplied with a 2-metre cable, giving you greater flexibility when positioning it on the counter.
This is particularly useful where the scale is recessed into a counter, positioned away from the customer or used as part of a larger checkout installation.
Integrated Operator Display
The operator display is mounted directly on the scale and can be positioned on either the left-hand or right-hand side to suit the counter layout.
This gives staff a clear view of the recorded weight while allowing the separate pole display to face the customer.
Trade Approved for Selling Goods by Weight
The CAS PDN is legally approved for commercial retail use and is suitable for businesses selling goods by weight in the UK and EU.
The scale is:
- Class III trade approved
- Individually calibrated and verified
- M marked with the relevant notified body number and verification year
- Supplied with a Certificate of EU Conformity
- Compliant with EU Directive 2014/31/EU for Non-Automatic Weighing Instruments
This makes it suitable for professional retail environments where legal-for-trade weighing is required.
Dual Range Weighing Accuracy
The CAS PDN offers excellent precision across its full 15kg weighing capacity:
- Minimum weight: 40g
- 2g increments: From 40g up to 6kg
- 5g increments: From 6kg to 15kg
- Maximum capacity: 15kg
This dual-range performance provides greater accuracy for lighter goods while still allowing larger items to be weighed.
Large Stainless Steel Platter
The generous 380mm x 280mm stainless steel platter provides a durable and hygienic weighing surface for a wide range of retail products.
Its smooth surface is easy to clean and well suited to busy commercial environments.
Flexible Communication Protocols
The CAS PDN can be configured through its setup menu to use a range of preprogrammed communication protocols.
This allows the scale to work with different compatible POS systems, provided the correct protocol, COM port and serial communication settings are selected.
How the CAS PDN POS Scale Works
The CAS PDN connects directly to the POS terminal and sends the recorded weight to the retail software during a transaction.
The typical process is:
- Place the product on the scale.
- Select the relevant product or PLU button in the POS software.
- The software reads the weight transmitted by the scale.
- The POS system calculates the selling price using the product’s price-per-kilogram rate.
- Confirm the weight if prompted and complete the transaction.
This automated process removes the need to enter weight manually and helps improve both speed and accuracy at the checkout.
POS Software Compatibility
The CAS PDN can integrate with a range of retail and EPOS software platforms, including:
- SamTouch
- ICR Touch
- InfiPos
- PrintNode-compatible cloud POS systems
- Other compatible retail software using a supported serial protocol
Compatibility depends on the settings and capabilities of the individual POS software.
Please confirm compatibility before ordering, particularly when replacing an existing CAS PDII installation.
RS232 Serial Connection
The CAS PDN uses a reliable RS232 serial connection and is supplied with a 9-pin serial data cable.
For the best performance, the POS terminal should have a dedicated 9-pin male RS232 serial port.
USB-to-serial adapters are not recommended because they can introduce connection instability, intermittent communication or incorrect weight readings.
The POS software must also be configured with the correct:
- COM port number
- Baud rate
- Communication protocol
- Data settings
- Connected scale configuration
CAS PDN 15kg Specifications
- Maximum Capacity: 15kg
- Minimum Weight: 40g
- Resolution: 2g increments up to 6kg and 5g increments from 6kg to 15kg
- Trade Approval: Class III approved for retail trade use
- Scale Dimensions: 384mm wide x 308.4mm deep x 81.8mm high
- Platter Dimensions: 380mm wide x 280mm deep
- Pole Display Dimensions: 150mm wide x 100mm deep x 400mm high
- Pole Display Cable Length: 2 metres
- Scale Weight: 6.7kg
- Platter Material: Stainless steel
- Connectivity: RS232C 9-pin serial connection
- Serial Cable: 9F-to-9M RS232 cable included
- Power Supply: AC 220V / 50Hz
- Operator Display: Integrated display included
- Operator Display Position: Can be mounted on the left or right side
- Customer Display: Freestanding pole display included
- Communication Protocols: Multiple configurable POS communication protocols
- Colour: Modern black and ivory casing
What Is Included?
Each CAS PDN 15kg pole-display scale is supplied with:
- CAS PDN 15kg integrated POS scale
- Freestanding customer pole display
- 2-metre pole display cable
- Stainless steel weighing platter
- Integrated operator display
- UK power supply
- USB power cable
- 9F-to-9M RS232 serial data cable
- Certificate of EU Conformity
Ideal for Retail Businesses
The CAS PDN with customer pole display is suitable for:
- Convenience stores
- Farm shops
- Delicatessens
- Greengrocers
- Butchers
- Bakeries
- Sweet shops
- Health food stores
- Zero-waste shops
- Specialist food retailers
- Supermarkets
- General retail stores selling weighed products
The separate pole display makes it especially suitable for larger checkout counters, recessed scale installations and environments where the customer display needs to be positioned away from the scale.
Important Installation Information
Before purchasing, please check that:
- Your POS software supports integrated weight input
- Your POS terminal has a dedicated 9-pin RS232 serial port
- The correct CAS PDN communication protocol is available
- Your POS provider can configure the scale within the software
- The 2-metre customer display cable is suitable for your counter layout
USB-to-serial adapters are not recommended and may result in unreliable communication.
Important Care Information
The CAS PDN is not waterproof and must not be used in wet, damp or high-moisture environments.
Do not allow liquids to enter the scale body, displays, cable connections or internal components. Water or liquid damage is not covered by the manufacturer’s warranty.
Buy the CAS PDN 15kg POS Scale with Pole Display
The CAS PDN 15kg Trade Approved POS Integrated Scale with Customer Pole Display provides accurate weighing, reliable EPOS integration and clear visibility for both operators and customers.
With dual-range accuracy, a large stainless steel platter, direct RS232 connectivity and a flexible freestanding pole display, it is an excellent choice for retailers that need fast, compliant and professional weighing at the checkout.
Download
Download our CAS PDN POS Scale Specification Sheet.
CAS PDN POS Scale – Specification Sheet
Additional information
| Weight | 5.6 kg |
|---|---|
| Dimensions | 384 × 309 × 82 mm |
