Description

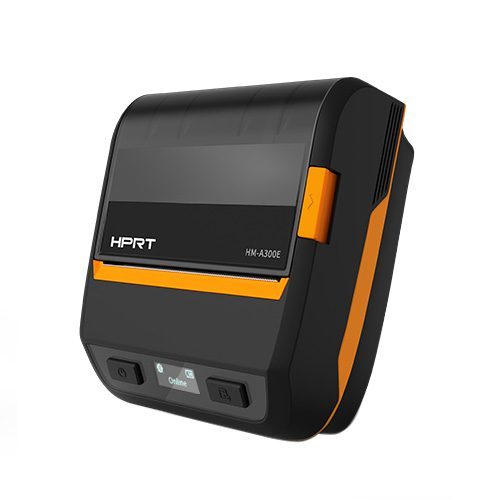

HPRT HM-A300E – Mobile Thermal Receipt & Label Printer

The HPRT HM-A300E Mobile Thermal Receipt and Label printer is ideal for retail, warehouse or logistics operations.  Either use as a standard mobile thermal receipt printer or as a mobile label printer.

• Android / IOS Compatible
• Resolution 203DPI
• ESC/POS CPCL Protocol.
• Receipt / Label / Black mark
• Support charging via USB port
• Dual-mode Bluetooth connection
• Support power-saving mode
• The design of large paper compartment is able to contain larger paper roll, which is user-friendly and highly efficient without frequent replacement
• Paper width can be freely adjusted by the sliding-type paper guide, which is compatible with various consumables

Specifications

Printing Spec

• Print Method – Direct Thermal
• Resolution – 203 dpi
• Print Speed – Max 75mm/s
• Print Width – Max 72mm
• Print Protocol – ESC/POS; CPCL

Media Spec

• Type – Thermal label paper, Receipt paper, Black mark paper
• Width – 25mm-80mm adjustable
• Paper Roll user Diameter – Max. 50mm
• Thickness – 53um~150um
• Paper-out Direction – upward

Communication interface

• Standard – USB Type-C, Dual-mode Bluetooth 5.2

Sensor

• Standard – Out of paper , gap sensor, cover open sensor, TPH over temperature, battery temperature, black mark sensor

Hardware

• Ram – 4Mb
• Flash 8Mb
• Buzzer – Built-in
• Display Dots:96×39

Character and Barcode

• Alphanumeric, Simplified Chinese, Traditional Chinese, English, other languages
• 1D Code:Code 39, Code 93, UCC/EAN128, Code 128, Codebar, Interleaved 2-of-5, UPC-A, UPC-E, 2 and 5 digit add-on,
• EAN-8, EAN-13, 2 and 5 digit add-on, Industrial 2 of5 2D Code:
• PDF417, QR Code

Cutting method

• Tear bar

Power Supply

• Input – AC100-240V,50/60Hz
• Output – DC5V, 1A

Battery Spec

• Input – AC100-240V,50/60Hz
• Output – DC5V, 1A

Reliability

• TPH Life – 50km
• Drop height 1.5m

Environmental Parameters

• Operating – 0°C~45°C , 25%~85%RH, non-condensing
• Storage – 20°C~70°C, 5%～95%RH, non-condensing

Dimensions

• 110×117.8×58mm
• 400g (with battery)

Downloads:

• Download the latest HM-A300E datasheet
