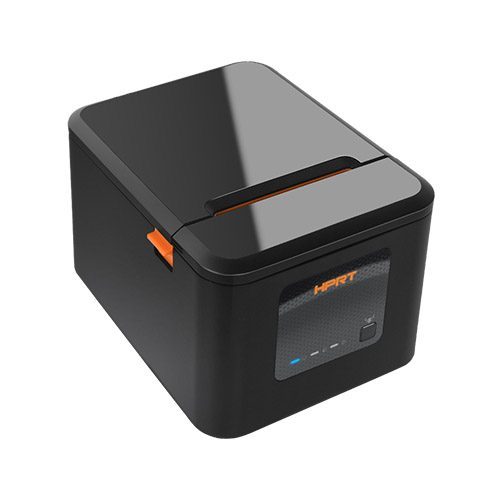

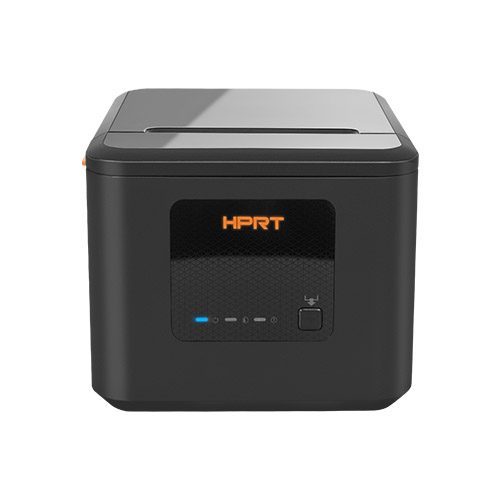

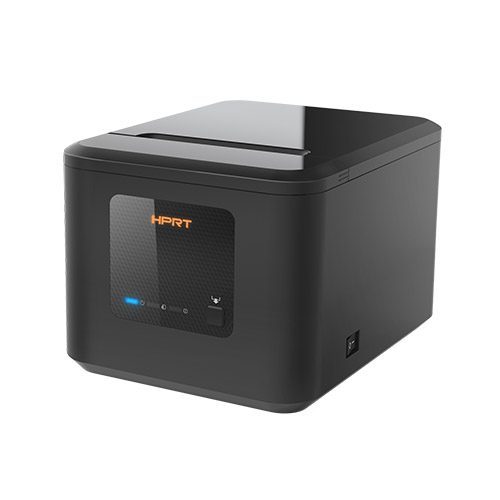

HPRT TP80K – 3″ Thermal Receipt Printer

The HPRT TP80K thermal receipt printer is the latest thermal receipt printer from HPRT.  Very stylish and reliable thermal printer with excellent print speed and print definition.

Compatible with a wide range of POS systems either Windows / Android / Linux or IOS.  Unbeatable price point.

Features:

• Stylish Cube Design.
• Top paper loading and feeding.
• Dual-blade auto cutter.
• Cutter jam-free design.
• Up to 260mm/s printing speed.
• 576 dots TPH for 72mm printing width.

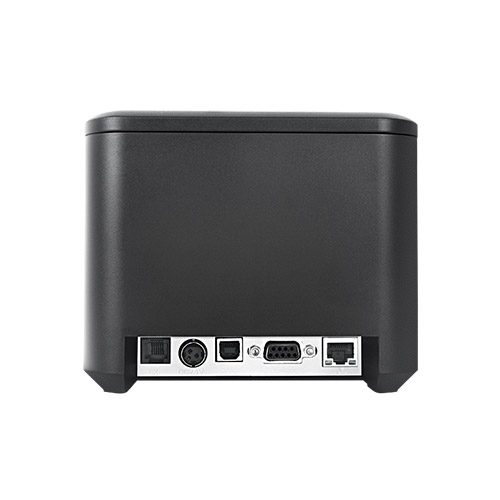

• Communications – 5 Interface: USB + RS232 + LAN interfaces + Wifi + Bluetooth.
• Supplied with serial & USB cables.

Specifications:

Printing

• Print Method: Direct thermal line printing
• Resolution default 203 dpi (emulated 180 dpi)
• Print Speed max. 230 mm/s
• Print Width 72 mm(576 dots)

Interface

• Default: built-in USB, RS232, LAN

Memory

• RAM: 4 MB
• Flash: 4 MB

Character Set

• Font: Font A:12*24; Font B:9*17; CHN:24*24
• Number of Columns: 48/64
• Alphanumeric: 95
• Code page: 46

Barcode

• 1D: UPC-A, UPC-E, EAN8, EAN13, CODE 39, ITF, CODEBAR, CODE 128, CODE 93
• 2D: QR code, PDF417

Graphics

• Support bitmap printing with different density and user defined bitmap printing. (Max.40K for per bitmap, and Max.256k for total)

Detection Sensors

• Paper Out
• Cover Open
• Cutter Jam sensor
• TPH over temperature

Power Supply

• Input: AC 100V ~ 240V, 50/60Hz
• Output: DC 24V±5%, 1.5 A

Paper

• Paper Type: Standard Thermal Paper
• Paper Width: 79.5±0.5 mm
• Paper Thickness: 0.056 mm ~ 0.13 mm
• Roll Paper Diameter: Max. 83 mm
• Paper Loading: Front Loading, Easy Loading
• Paper Cut: Partial Cut

Condition

• Operating: 0°C ~ 45°C, 10% ~ 85% R.H
• Storage: -20°C ~ 60°C, 10% ~ 90% R.H, no-condensation

Accessories

• Paper roll
• Power Adapter
• RS232 cables
• Quick Start Guide

Emulation

• ESC/POS

Reliability

• TPH 100 km
• Motor Life 360000 hours
• Cutter Life 1 million cuts
• Protection Class IP42

Driver

• Windows XP / 7/ 8/ 10, Windows Server 2008/2012/2016
• POS Ready; Linux; OPOS; macOS
• Utility Tools Windows 7/8/10 Windows Server 2008/2012/2016

Eco Features

• Paper saving mode

Certifications

• CE/CCC

Download HPRT TP80K datasheet
