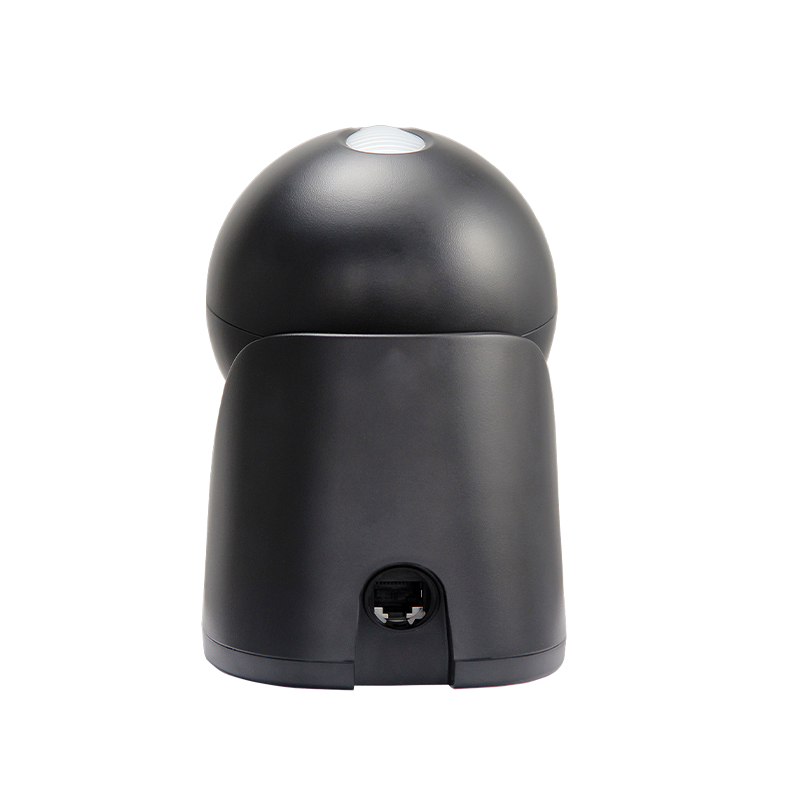

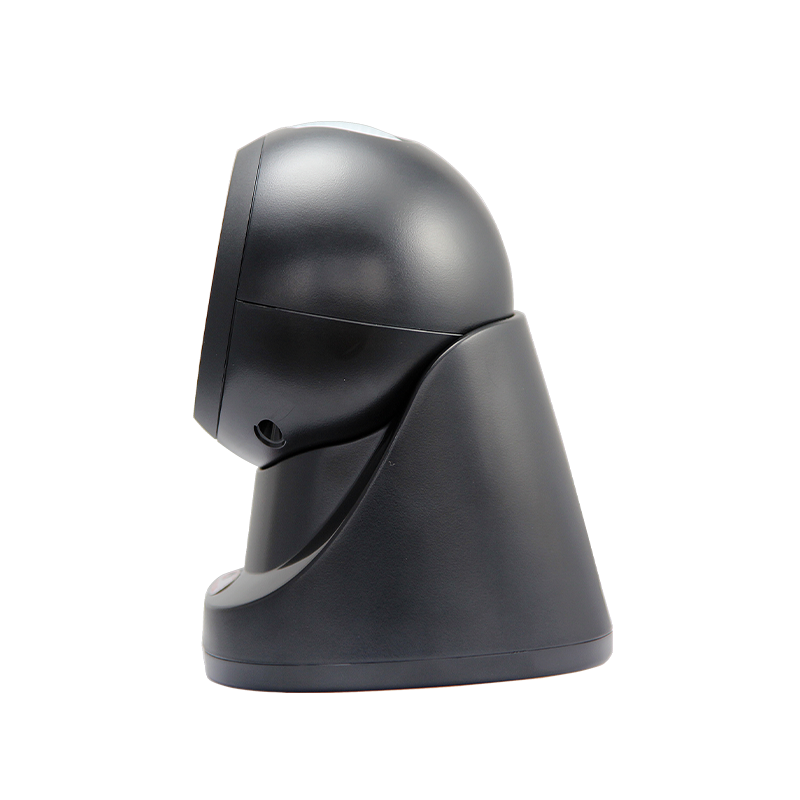

The Sunlux XL-2302 is a high performance, omnidirectional barcode scanner at a bargain price!

Discover the Sunlux XL-2302: Your Ultimate Barcode Scanning Solution!

Unlock unparalleled efficiency with the Sunlux XL-2302, a high-performance, omnidirectional barcode scanner designed for businesses that demand reliability without breaking the bank. Whether you’re in retail, logistics, or inventory management, this scanner offers lightning-fast scanning capabilities and seamless compatibility with various systems.

With its sleek design and user-friendly interface, the Sunlux XL-2302 is perfect for any workspace. Experience superior accuracy and versatility, scanning 1D and 2D barcodes from any angle, ensuring a smooth workflow and enhanced productivity. Plus, its durable construction means it’s built to withstand the rigors of daily use.

Why pay more? Get premium performance at a bargain price with the Sunlux XL-2302. Elevate your operations and streamline your processes today!

Benefits.

• The best cost-performance desktop scanning solution.
• Compatible with Linux, Android, Windows XP7/8/10/MAC OS.
• Plug and play. No need to install the driver. Support POS systems, cash registers.
• With larger angles, adjustable omni-directional scanning head meets various needs.
• High speed and reliable performance on all common 1D and 2D codes

Features.

• Soft indicator light gives a better sense of experience.
• Ultra-wide scanning angle and ultra-far scanning distance.
• 100% self0independent technology, support online upgrade.
• Compatible with Linux, Android, Windows XP / 7 / 8 / 10, Mac OS.
• Suitable for retail stores, supermarkets, healthcare systems etc..
• Adjustable volume to meet different environmental requirements.

Performance Parameter

• Light Source: Red LED (Lighting) Colour temperature 650nm LED.
• CPU: 32 bit Processor.
• Scan Mode: Continuous Scan.
• Image Size: 1280 x 800 Pixel.
• Scanning Speed: 60 fps/s
• Mobile Tolerance: 1.5m/s
• Minimum Resolution: >3mil
• Scanning Direction: Omnidirectional
• Scanning Angle: Deflection: 360 degrees / Inclination: 65 degrees / Rotation: 60 degrees
• Decoding Depth: 5 – 2800mm @ (13mil UPC/EAN 100% PCS=90%)

Mechanical Parameter

• Dimensions: L150mm x W100mm x H110mm.
• Weight: 362g.
• Material: ABS + PC.
• Cable Standard: 2M straight.

Electrical Paramater

• Input Voltage: DC 5 Volts.
• Power: 1.0 watt.
• Working Current: <215mA.
• Stand-by Current: <148mA.
• Indicator: Adjustable Tone and Volume.
• Interface: USB-HID, RS232, USB-VCP.
• Light Levels:  0 ~ 5000 Lux (fluorescence), 0 ~ 100,000 Lux (sunlight).

Environmental Parameter

• Operating Temperature: -10°C to 50°C.
• Storage Temperature: -20°C to 60°C.
• Humidity: 5% to 95% relative humidity, non-condensing.

Decode Capability

• 1D: Codabar, Code11, Code39, Code32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code93, Code128, GS128, UPC-A, UPC-E, EAN 8, EAN 13, GS1 Databar(RSS14), GS1 Databar Limited, GS1 Databar Expanded, etc.
• 2D: PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec Code.

Downloads

• Sunlux XL-2302 Data Sheet.
