Bixolon SRP-350V Thermal Receipt Printer with Serial and USB Ports

Highly Functional and Reliable: The SRP-350V Thermal POS Printer

Boost efficiency with the SRP-350V, a 3-inch (80mm) thermal receipt and ticket printer, designed for speed, reliability, and flexibility.

Key Features:

• Lightning-Fast Printing: Achieve speeds of up to 300 mm/sec at 180 dpi for crisp, clear receipts and tickets.
• Enhanced Paper Handling: Prevent paper jams with an innovative paper exit design, paired with near-end and paper-end mechanical sensors.
• Visibility Intelligence™: Automatically detects paper type (including Blue4est®) and optimizes print quality.

Versatile Connectivity:

• USB standard, with optional Serial, Parallel, or Ethernet connectivity to suit your setup.

User-Friendly Design:

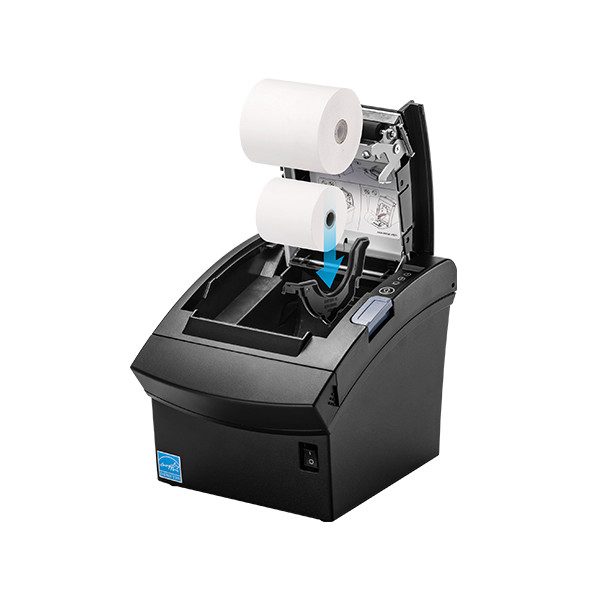

• Drop-In Paper Loading: Quick and hassle-free.
• LED Indicators: Simple status updates at a glance.
• Manual Cutter: Standard for precise cuts every time.

Eco-Friendly and Cost-Effective:

• Save up to 25% of paper per roll with three compression levels, all managed through the Unified Utility—no software changes required.

Additional Options for Busy Environments:

• B-Melodist: Optional order notification function for fast-paced kitchens.
• Accessories include an optional vertical stand, splash cover, wall mount, and a built-in SMPS for added convenience.

The SRP-350V delivers exceptional performance and reliability, making it the perfect solution for retail, hospitality, or kitchen environments.

Get yours today and elevate your POS system! 💻

Specifications:

Print Characteristics

• Print Method: Direct Thermal
• Print Speed: Up to 300 mm/sec
• Print Resolution: 180 dpi
• Print Width: Up to 72 mm
• Sensor: Paper End, Paper Near End, Cover Open, Visibility Intelligence Sensor

Media Characteristics

• Media Type: Receipt
• Media Width: 80 mm, Optional 58 mm
• Media Roll Diameter: Up to 83 mm
• Media Thickness 0.05 ~ 0.08 mm
• Supply Method: Easy Paper Loading

Physical Characteristics

• Dimensions: H146 W145 x D204mm
• Weight: 1.6 kg (3.52 lbs.)

Electrical

• EnergyStar Certified,
• External Power Adaptor: 100-240 V AV, 50/60 Hz
• Drawer Port: 2 ports (Via y-type adaptor)

Performance Characteristics

• Memory: 64 Mb SDRAM, 64 Mb Flash
• NV Image Memory: 256 Kbytes (Mono)
• Receive Buffer: 4 Kbytes
• User Define Buffer: 12 Kbytes

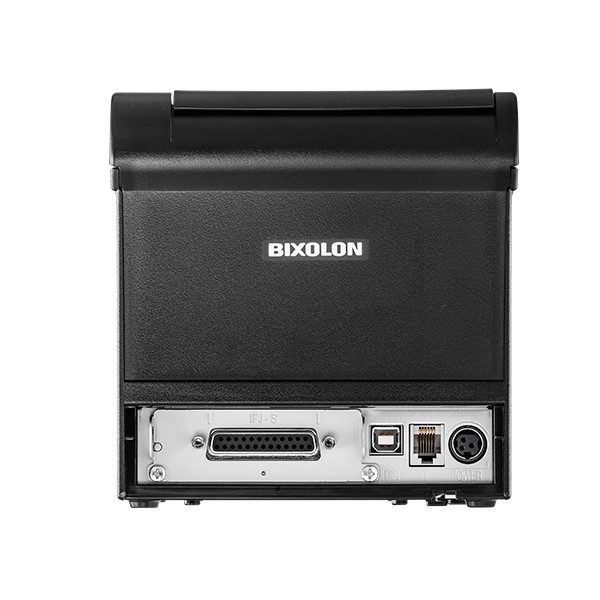

• Interface
  • Standard: USB V2.0 FS
  • Optional:
    ① USB V2.0 FS + Serial
    ② USB V2.0 FS + Parallel
    ③ USB V2.0 FS + Ethernet
    ④ USB V2.0 FS + Dual Serial

Environment Characteristics

• Temperature
  • Operating: 0 ~ 40 ℃ (32 ~ 104 ℉)
  • Storage: -20 ~ 60 ℃ (-4 ~ 140 ℉)
• Humidity
  • Operating: 10 ~ 80 % RH
  • Storage: 10 ~ 90 % RH

Software

• Emulation: BXL / POS

Driver / Utility

• Windows Driver
• OPOS/JPOS Driver
• Linux/Mac CUPS Driver
• Virtual COM USB/Ethernet Driver
• Utility Program
• Network Auto Installer

SDK / Plugin

• Android/iOS/Windows SDK
• Linux SDK
• Xamarin SDK
• Web Print SDK
• Cordova Plugin

Application

• mPrint App (Android, iOS)

Fonts / Graphics / Symbologies

• Character Size: Font A: 12 x 24, Font B: 9 x 17, Font C: 9 x 24, KOR, CHN, JPN: 24 x 24
• Characters Per Line: Font A: 42, Font B, C: 56, KOR, CHN, JPN: 21
• Character Sets:  Alphanumeric: 95, Extended Graphics: 128 x 35 page, International: 32
• Graphics: Supporting user-defined fonts, graphics, formats, and logos
• Barcode Symbologies:
  • 1D: Coda Bar, Code39, Code93, Code128, EAN-8, EAN-13, ITF, UPC-A, UPC-E
  • 2D: Data Matrix, PDF417, QR Code

Accessories

• Standard: USB A-B Cable 1.8 m
• Optional:
  • Built-in SMPS,
  • Vertical stand,
  • Wall mount,
  • Splash Proof Cover,
  • External buzzer,
  • B-Melodist,
  • Serial Cable (9-9/25-9 pin),
  • Parallel Cable

Downloads:

• Specification Sheet.
• Users Manual.
